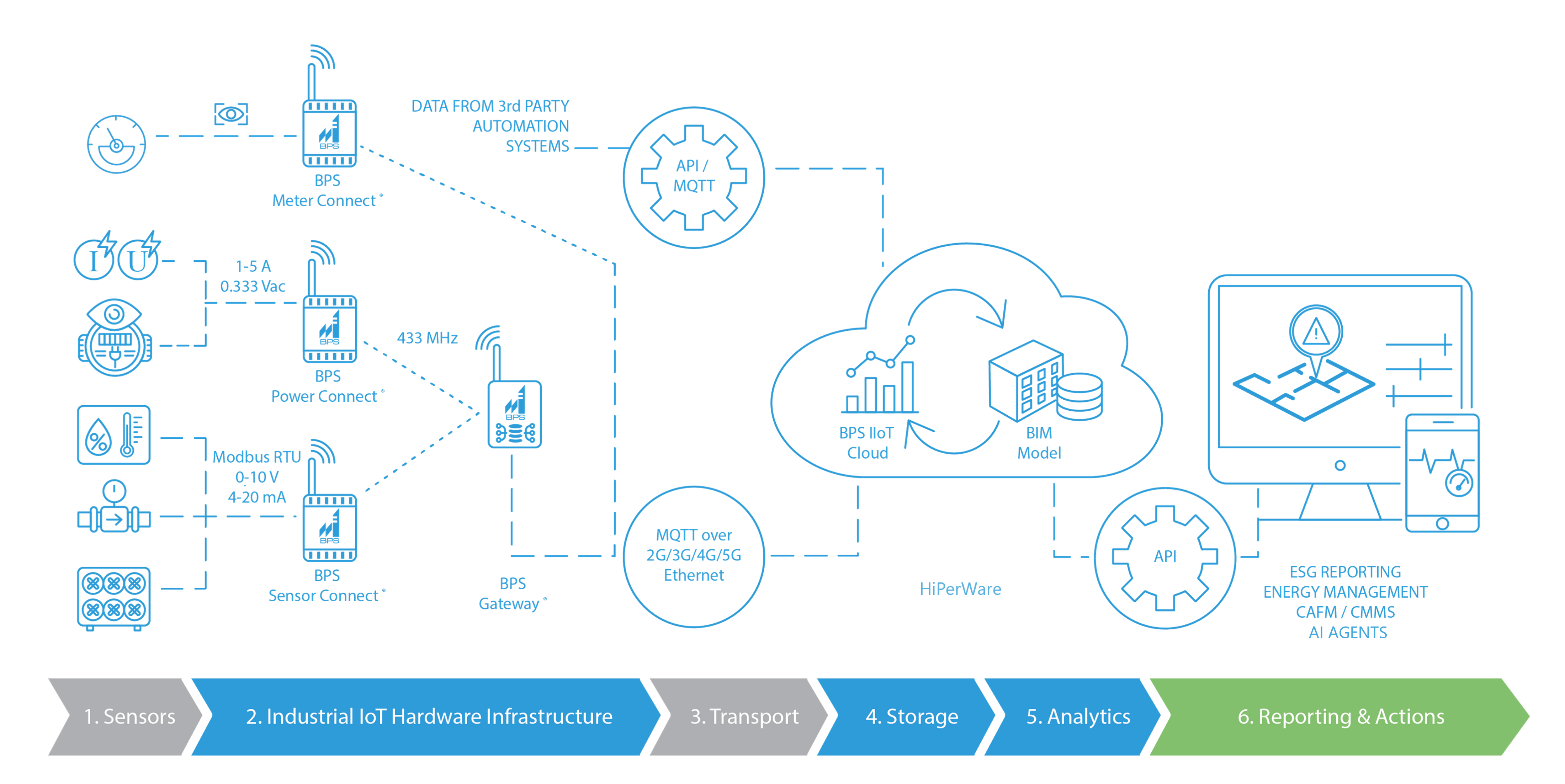

HiPerWare hardware allows to non-invasively collect big data of technical operations processes

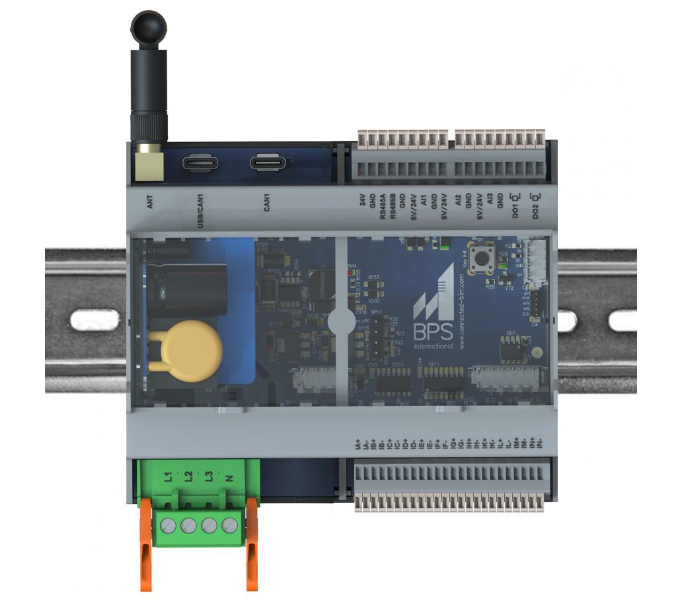

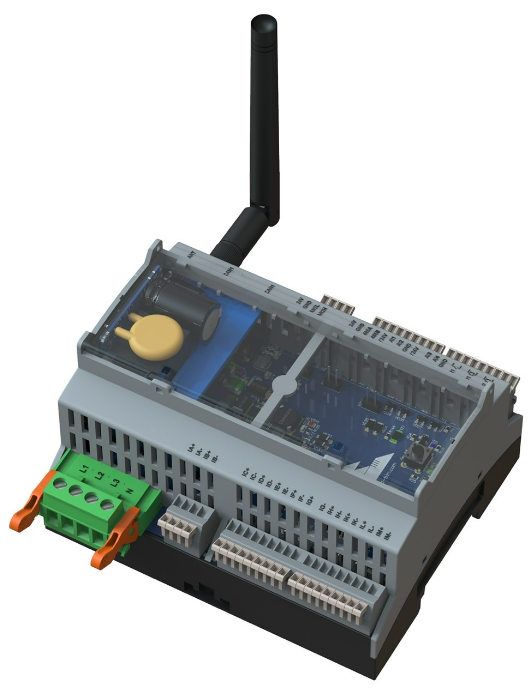

The Power Connect device is a compact three-phase instrument specifically designed for collecting electric parameters. The controller is responsible for collecting data of power consumption, energy usage and quality.
The device measures single and/or three-phase electricity parameters, including quality indicators, phase and line voltage, as well as variable frequency of the electrical grid. Measured Parameters: - 1 x RS-485 port - 2 x CAN ports - Radio channel communication module - 3 analog inputs - 2 relay outputs - 12 inputs for connecting clamp-on current transformer - Internal light sensor The PC118R device is designed to be mounted on DIN rail. The device provides: - 3 galvanically isolated voltage inputs for connection to ~220V or ~380V power lines. - 12 inputs for accurately determining the current through current transformers. - True RMS detection of voltage and current values. - Measurement of active, reactive, and total power, power factor (cosφ), and frequency in single- and/or three-phase electrical connections. - Built-in clock and calendar with timestamp functionality. Interfaces: - 1 x RS-485 port - 2 x CAN ports - Wireless communication interface - USB power output port Registered Parameters: - Current; Voltage; Frequency - Power Factor; Active/Reactive/Total Power - Active/Reactive Energy - THD Ua (%) THD Ia (%)** - TDD Ua (%) TDD Ia (%)** The PC118R device includes: - An RS-485 input/output module (1 x RS-485 port) - Two CAN input/output modules (2 x CAN ports) - A radio channel communication module - Three analog inputs - Two relay outputs - An output for connecting to a single- and/or three-phase network - Twelve inputs for connecting current transducers - An internal light sensor Dimensions: L = 108 mm, W = 118 mm, H = 61 mm.

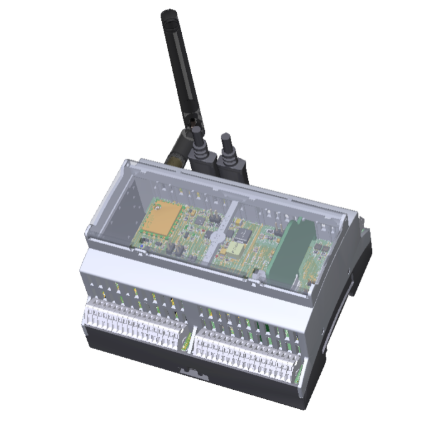

The Sensor Connect device is a multifunctional measurement controller for temperature, humidity, air quality, vibration, pressure, motion sensors, or any other type of analog sensor. Sensor Connect controllers collect data from these sensors and transmit it to the HiPerWare platform.
Communication with the gateway is carried out via a radio channel and communication interfaces CAN and RS-485. Internal parameters setting of the device is carried out through USB interface. Measured Parameters: - Temperature, Humidity, Current, Air-quality, Vibration, Pressure - Other parameters, measured by 0-10V or 4-20V standard sensors The Sensor Connect device includes: - 1 x RS-485 port - 2 x CAN ports - radio communication module - 11 inputs for unified 0-10 V sensors - 2 relay outputs - 9 inputs for connecting two-wire sensors (for example, PT1000 temperature sensor) - 3 inputs for current sensors - 4 digital inputs;- 2 inputs for 4-20мА standard sensors;- internal light sensor. Registered Parameters: - Temperature, Humidity, Current - Other parameters, registered by 0-10V or 4-20V standard sensors Interfaces: - 1 x RS-485 port - 2 x CAN ports - wireless communication interface - USB port Sensor Connect does not require maintenance during operation. Device dimensions: Length = 108mm, Width = 118mm, Height = 61mm.

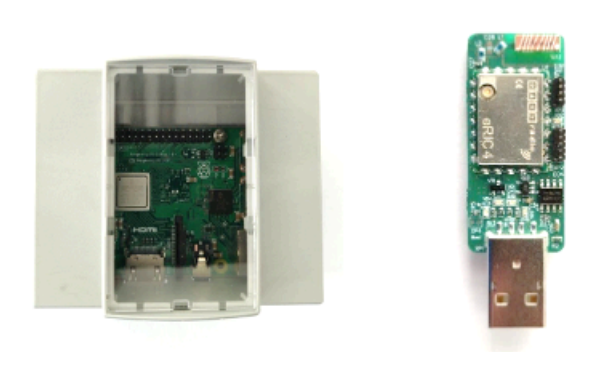

The Cloud Connect gateway serves as an intermediate component between the controllers and the HiPerWare platform. It receives the data transmitted by the Power Connect and Sensor Connect controllers via the secure radio protocol and forwards it to the HiPerWare platform.
Basic Data - RF 868 MHz connectivity - Local Monitoring Hardware/Radio Network - Remote device configuration - Internet connection (RJ45) Shape 32 Security - AES-256 - Device Pairing - Authorization
